Lab Super Cisco 4
February 14, 2017
Add Comment
alhamdulillah kembali lagi dengan ane Fathi, kali ini Untuk materi Superlab 4 sebagai berikut :
- Routing OSPF
- Routing EIGRP
- Routing RIPv2
- Redistribution
 |
| Gambar 1.0 Topology |
oke langsung saja biar gak lama-lama masukkan konfigurasi dibawah ini yaa....
kita konfigurasikan bagian OSPF yaitu IDN-R1 sampai IDN-R3 :
 |
| Gambar 1.1 |
Device
|
Interfaces
|
IP Address
|
Gateway
|
IDN-R1
|
Fa0/0
|
111.111.111.1/24
|
N/A
|
Se2/0
|
13.13.13.1/24
| ||
Se3/0
|
12.12.12.1/24
| ||
IDN-R2
|
Fa0/0
|
122.122.122.2/24
| |
Se2/0
|
23.23.23.2/24
| ||
Se3/0
|
12.12.12.2/24
| ||
IDN-R3
|
Fa1/0
|
103.103.103.3/24
| |
Fa0/0
|
133.133.133.3/24
| ||
Se3/0
|
13.13.13.3/24
| ||
Se2/0
|
23.23.23.3/24
|
IDN-R1(config)#router ospf 1
IDN-R1(config-router)#net 111.111.111.0 0.0.0.255 area 0
IDN-R1(config-router)#net 13.13.13.0 0.0.0.255 area 0
IDN-R1(config-router)#net 12.12.12.0 0.0.0.255 area 0
IDN-R1(config-router)#ex
IDN-R2(config)#router ospf 1
IDN-R2(config-router)#net 122.122.122.0 0.0.0.255 area 0
IDN-R2(config-router)#net 23.23.23.0 0.0.0.255 area 0
IDN-R2(config-router)#net 12.12.12.0 0.0.0.255 area 0
IDN-R2(config-router)#ex

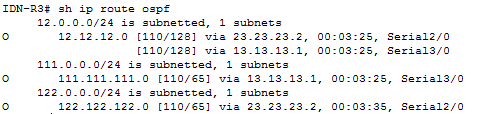

IDN-R3(config)#router ospf 1Selanjutnya kita lakukan verifikasi, pastikan sama seperti gambar dibawah ini :
IDN-R3(config-router)#net 133.133.133.0 0.0.0.255 area 0
IDN-R3(config-router)#net 103.103.103.0 0.0.0.255 area 0
IDN-R3(config-router)#net 23.23.23.0 0.0.0.255 area 0
IDN-R3(config-router)#net 13.13.13.0 0.0.0.255 area 0
IDN-R3(config-router)#ex
 |
| Gambar 1.2 |
 |
| Gambar 1.3 |
Name Device
|
IP address
|
Gateway
|
IDN-PC 1
|
111.111.111.2/24
|
111.111.111.1
|
IDN-PC 2
|
111.111.111.3/24
|
111.111.111.1
|
IDN-PC 3
|
122.122.122.3/24
|
122.122.122.2
|
IDN-PC 4
|
122.122.122.4/24
|
122.122.122.2
|
IDN-PC 5
|
133.133.133.5/24
|
133.133.133.3
|
IDN-PC 6
|
133.133.133.6/24
|
133.133.133.3
|
lalu pastikan ping antar router 1-3 tersebut :
 |
| Gambar 1.4 |
oke jika sudah bisa ping kita lanjutkan ke lokasi topology lain :
 |
| Gambar 1.5 |
Sekarang masukkan konfigurasi Routing EIGRP nya :
IDN-R4(config)#router eigrp 100
IDN-R4(config-router)#net 144.144.144.0
IDN-R4(config-router)#net 104.104.104.0
IDN-R4(config-router)#net 46.46.46.0
IDN-R4(config-router)#net 45.45.45.0
IDN-R4(config-router)#no auto-summary
IDN-R4(config-router)#ex
IDN-R5(config)#router eigrp 100
IDN-R5(config-router)#net 155.155.155.0
IDN-R5(config-router)#net 46.46.46.0
IDN-R5(config-router)#net 45.45.45.0
IDN-R5(config-router)#no auto-summary
IDN-R5(config-if)#ex
IDN-R6(config)#router eigrp 100Sekarang kita lakukan verifikasi terhadap routing EIGRP nya :
IDN-R6(config-router)#net 166.166.166.0
IDN-R6(config-router)#net 56.56.56.0
IDN-R6(config-router)#net 46.46.46.0
IDN-R6(config-router)#no auto-summary
IDN-R6(config-router)#ex
 |
| Gambar 1.6 |
 |
| Gambar 1.7 |
 |
| Gambar 1.8 |
Pastikan sama seperti gambar diatas, lalu kita masukkan IP address juga di setiap PC. Ikuti seperti table di bawah ini :
Name Device
|
IP address
|
Gateway
|
IDN-PC 7
|
144.144.144.7/24
|
144.144.144.4
|
IDN-PC 8
|
144.144.144.8/24
|
144.144.144.4
|
IDN-PC 9
|
155.155.155.9/24
|
155.155.155.5
|
IDN-PC 10
|
155.155.155.10/24
|
155.155.155.5
|
IDN-PC 11
|
166.166.166.11/24
|
166.166.166.6
|
IDN-PC 12
|
166.166.166.12/24
|
166.166.166.6
|
 |
| Gambar 1.9 |
Sekarang kita pindah ke konfigurasi RIPv2 :
 |
| Gambar 2.0 |
Device
|
Interfaces
|
IP Address
|
Gateway
|
IDN-R7
|
Fa0/0
|
177.177.177.7/24
|
N/A
|
Se2/0
|
78.78.78.7/24
| ||
Se3/0
|
79.79.79.7/24
| ||
IDN-R8
|
Fa1/0
|
188.188.188.8/24
| |
Fa0/0
|
108.108.108.8/24
| ||
Se2/0
|
78.78.78.8/24
| ||
Se3/0
|
89.89.89.8/24
| ||
IDN-R9
|
Fa0/0
|
199.199.199.9/24
| |
Se3/0
|
79.79.79.9/24
| ||
Se2/0
|
89.89.89.9/24
|
Nah, jika sudah sekarang kita langsung masuk ke konfigurasi RIPv2. Ikuti seperti gambar dibawah ini :
IDN-R7(config)#router rip
IDN-R7(config-router)#version 2
IDN-R7(config-router)#net 177.177.177.0
IDN-R7(config-router)#net 78.78.78.0
IDN-R7(config-router)#net 79.79.79.0
IDN-R7(config-router)#no auto-summary
IDN-R7(config-router)#ex
IDN-R8(config)#router rip
IDN-R8(config-router)#version 2
IDN-R8(config-router)#net 108.108.108.0
IDN-R8(config-router)#net 188.188.188.0
IDN-R8(config-router)#net 78.78.78.0
IDN-R8(config-router)#net 89.89.89.0
IDN-R8(config-router)#no auto-summary
IDN-R8(config-router)#ex
IDN-R9(config)#router ripVerifikasi :
IDN-R9(config-router)#version 2
IDN-R9(config-router)#net 199.199.199.0
IDN-R9(config-router)#net 89.89.89.0
IDN-R9(config-router)#net 79.79.79.0
IDN-R9(config-router)#no auto-summary
IDN-R9(config-router)#ex
 |
| Gambar 2.1 |
 |
| Gambar 2.2 |
 |
| Gambar 2.3 |
Name Device
|
IP address
|
Gateway
|
IDN-PC 13
|
177.177.177.13/24
|
177.177.177.7
|
IDN-PC 14
|
177.177.177.14/24
|
177.177.177.7
|
IDN-PC 15
|
188.188.188.15/24
|
188.188.188.8
|
IDN-PC 16
|
188.188.188.16/24
|
188.188.188.8
|
IDN-PC 17
|
199.199.199.17/24
|
199.199.199.9
|
IDN-PC 18
|
199.199.199.18/24
|
199.199.199.9
|
 |
| Gambar 2.4 |
 |
| Gambar 2.5 |
Device
|
Interfaces
|
IP Address
|
Gateway
|
IDN-R10
|
Fa1/0
|
103.103.103.10/24
|
N/A
|
Fa0/0
|
108.108.108.10/24
| ||
Fa6/0
|
104.104.104.10/24
|
IDN-R10(config)#router ospf 1
IDN-R10(config-router)#net 103.103.103.0 0.0.0.255 area 0
IDN-R10(config-router)#redistribute rip subnet tag 1
IDN-R10(config-router)#redistribute eigrp 100 subnet
IDN-R10(config-router)#ex
IDN-R10(config)#router eigrp 100
IDN-R10(config-router)#net 104.104.104.0
IDN-R10(config-router)#redistribute rip metric 1 1 1 1 1
IDN-R10(config-router)#redistribute ospf 1 metric 1 1 1 1 1
IDN-R10(config-router)#ex
IDN-R10(config)#router rip
IDN-R10(config-router)#version 2
IDN-R10(config-router)#net 108.108.108.0
IDN-R10(config-router)#redistribute ospf 1 metric 1
IDN-R10(config-router)#redistribute eigrp 100 metric 1
IDN-R10(config-router)#ex
oke sekarang verifikasi, pastikan seluruh device bisa ping yaa..
 |
| Gambar 2.6 |
 |
| Gambar 2.7 |
 |
| Gambar 2.8 |
pastikan semu sudah bisa ping ya. oke mung ini saja yang dapat saya sampaikan kurang lebihnya mohon dimaafkan dan terimakasih sudah berkunjung.
